Barrier Gate

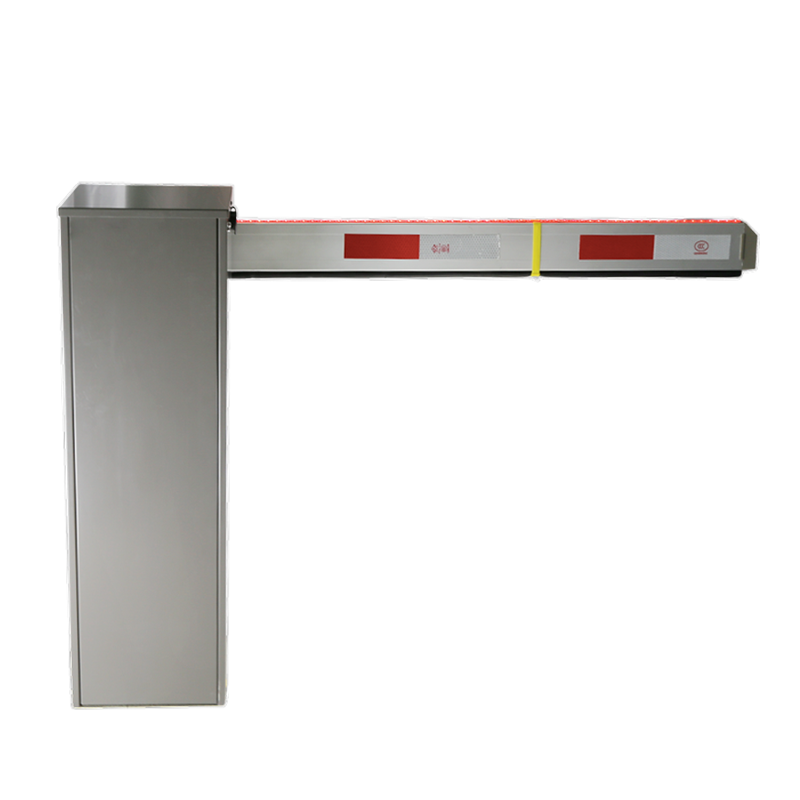

Parking Lot Barrier Gate BG-500
The barrier gate installed at entrance and exit of parking lot, to manage vehicle access. It it simple, reliable and low maintenance rate. Left/right barrier arm position easy to change.
  1. Automatic Barrier Gate
  2. 200W DC Motor
  3. Default Open Time 2.5 Seconds, Close Time 3 Seconds
  4. Barrier Arm Length Optional
  5. Folder Barrier Arm Optional
Parameter
Input Power AC110V-220V
Frequency 50/60Hz
Motor DC 200W
Control Remote/ Wired/ RS485
Barrier Arm Length Max 5 Meters, Default 3 Meters
Waterproof IP65
Working Temperature -25â„?to 65â„?
Size 925*285*250mm
Housing Material SPCC
Weight 45KG(Without Barrier Arm�

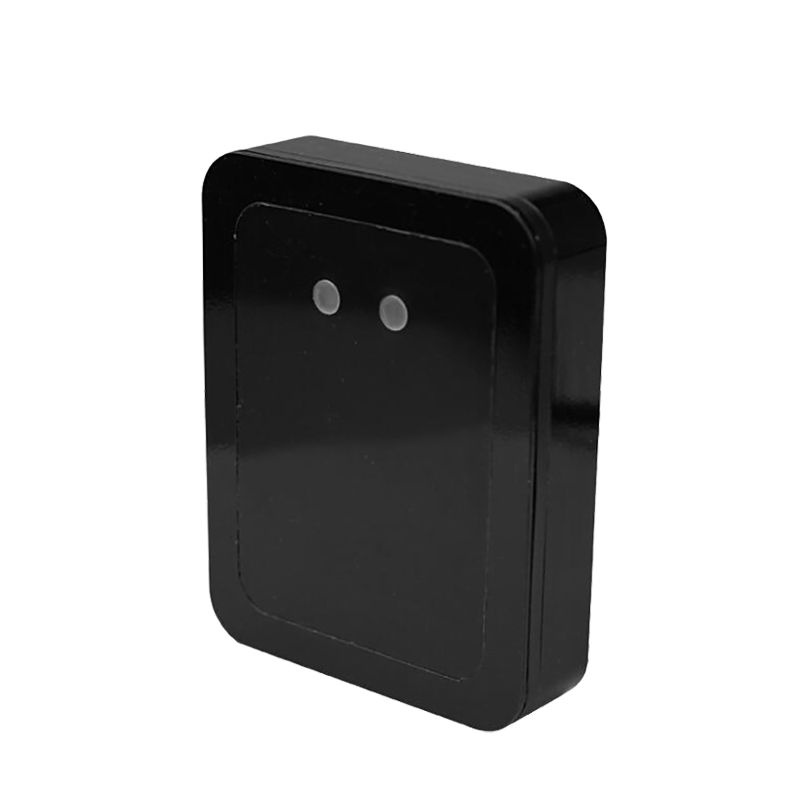

Radar Vehicle Detector VD-30
The Radar detector is is designed for detecting the existence and passing of vehicles. It is used to replace the traditional loop coil vehicle detector, can be used for barrier gate. Radar detector with better performance, can effectively prevent the accident hitting people or vehicle caused by the barrier arm.
  1. No need to cut the ground as loop detector
  2. Strong anti-interference, safety and reliability
  3. IP66 Waterproof
Parameter
Operating Voltage DC12V/ DC24V-2A
Power Consumption <2W
Detec Type Millimeter Wave
Operating Frequency 24-24.5GHz
Response Time 60ms
Beamwidth Vertical 17 â„? horizontal 37 â„?
Radar Type FMCW
Output Signal Switching Quantity/ RS485
Waterproof Rating IP67
Working Temperature -25℃~75�
