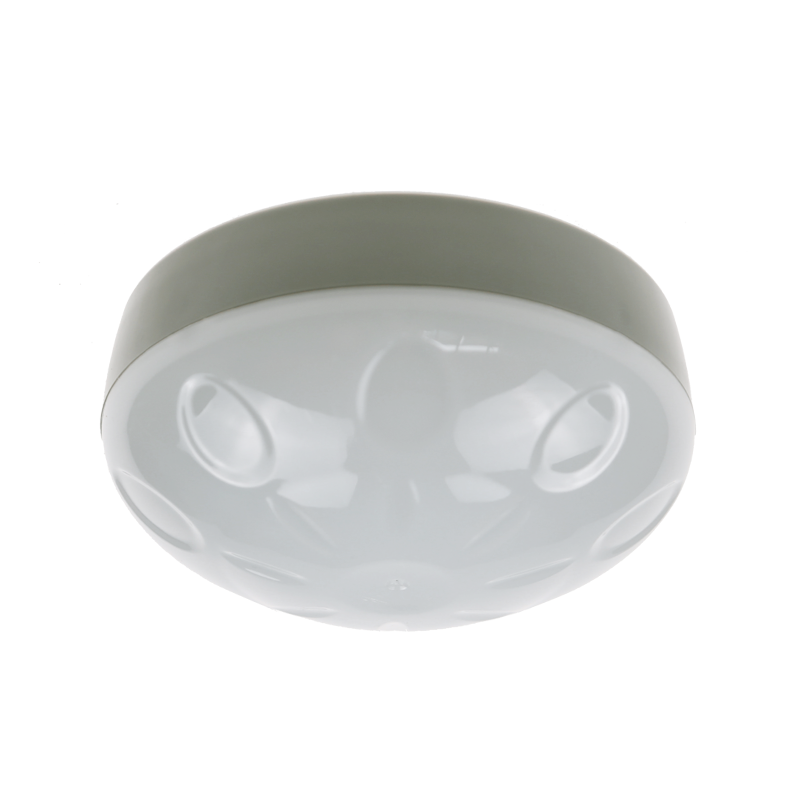

Centre Ultrasonic Indicator UIC-210
The centre ultrasonic indicator is designed for mounting on the ceiling or a cable channel and show the availability of a parking space, the indicator is connected to ultrasonic detector. Indications options: red/green, red/blue , red/green/blue.
- Red Color Means Occupied, Green Color Means Vacant
- DLED Red/ Green, Blue Optional
- Visible Distance More than 50 Meters
- RS485 Communication Protocol
- Snap on Base, Easy to Install and Adjustment
- Real Time Showing Parking Sapce Status
| Parameter |
| LED Quantity
|
6pcs Red, 6pcs Green
|
| Visual Angle
|
180 degrees
|
| Visual Distance
|
> 50 meters
|
| Detec Distance
|
50cm~350cm
|
| Working Temperature
|
-25â„?to 65â„?
|
| Installation
|
Hoisting
|
| Demand
|
match with ultrasonic detector
|

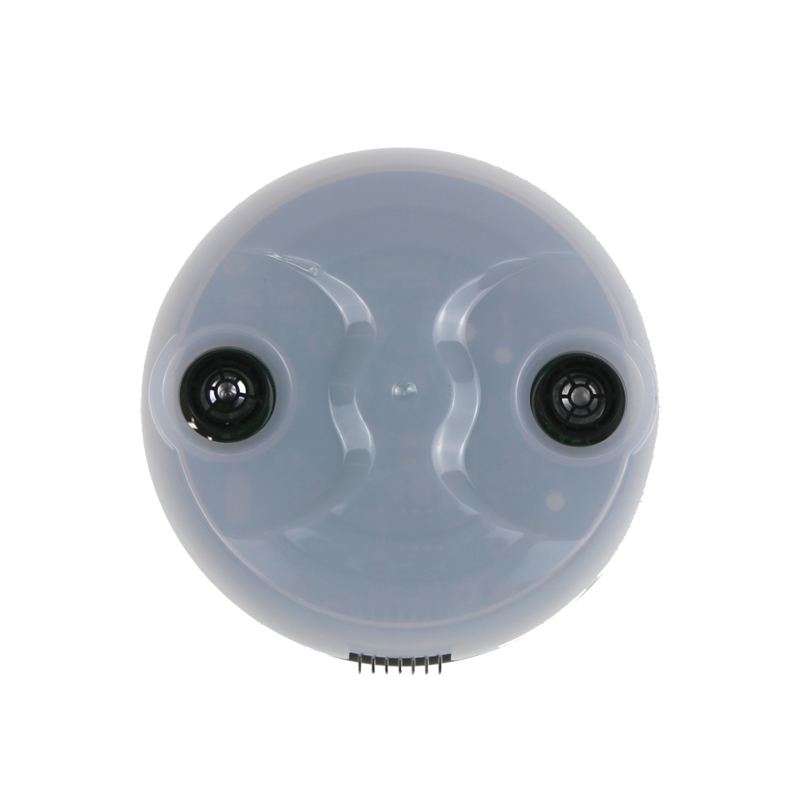

Centre Ultrasonic Sensor USC-213
The centre unltrasonic sensor is designed for mounting on the ceiling or a cable channel and ultrasonic-based technology employ for detection of real-time parking space occupancy information, the space status is displayed on related LED indicator.
- Centre Ultrasonic Sensor
- Detect Distance:20cm~420cm, Adjustable for Different Distance
- Voltage: DC 18-30V, voltage rating 24V
- RS485 Communication Protocol
- Snap on Base, Easy to Install and Adjustment
- Real Time Monitoring Parking Sapce Status
| Parameter |
| Operating Voltage
|
10V-30V, Recommend 24V
|
| Power Consumption
|
0.5W
|
| Type
|
Ultrasonic
|
| Detec Distance
|
20cm~420cm
|
| Communication Protocol
|
RS485
|
| Dimension
|
100*50mm
|
| Working Temperature
|
-25â„?to 65â„?
|
| Application
|
Indoor Covered Parking Lots
|
| Installation
|
Hoisting
|
| Demand
|
match with LED Indicator
|

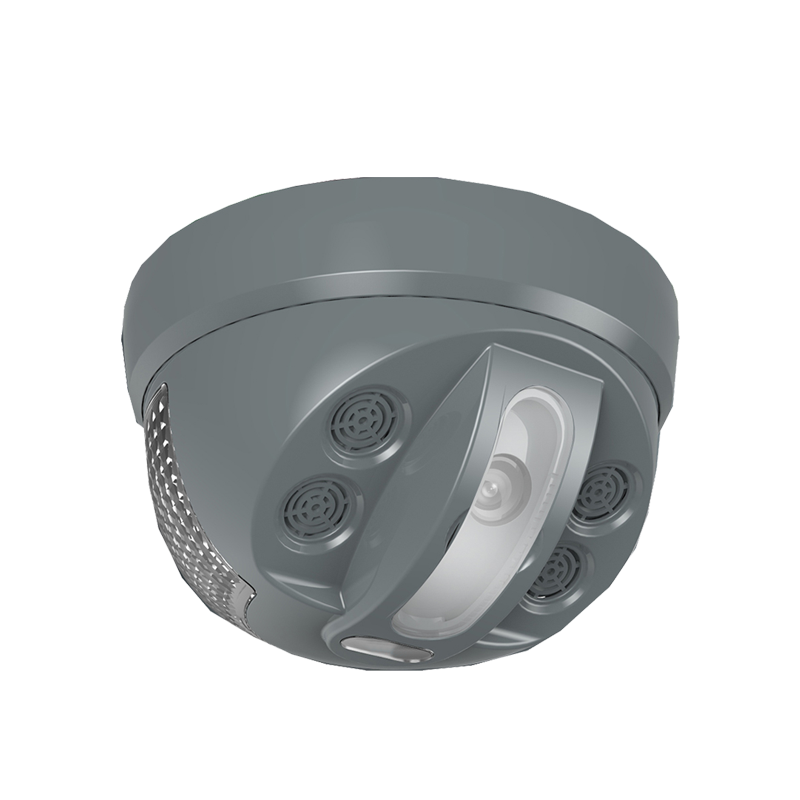

Integrated Ultrasonic Sensor USF-410
The Integrated ultrasonic sensor is is designed for detecting vehicles in front of each parking space. and ultrasonic-based technology employ for detection of real-time parking space occupancy information, the space status is displayed on built-in LED indicator.
- All in One Ultrasonic Sensor
- Built in LED Indicator, Red/ Green, Blue Optional
- Voltage: DC 18-30V, voltage rating 24V
- RS485 Communication Protocol
- Snap on Base, Easy to Install and Adjustment
- Real Time Monitoring Parking Sapce Status
| Parameter |
| Operating Voltage
|
10V-30V, Recommend 24V
|
| Power Consumption
|
1W
|
| Type
|
Ultrasonic
|
| Detec Distance
|
50cm~280cm
|
| Communication Protocol
|
RS485
|
| Application
|
Indoor Covered Parking Lots
|
| Working Temperature
|
-25â„?to 65â„?
|
| Installation
|
Hoisting
|
| Demand
|
Forward Mounted
|

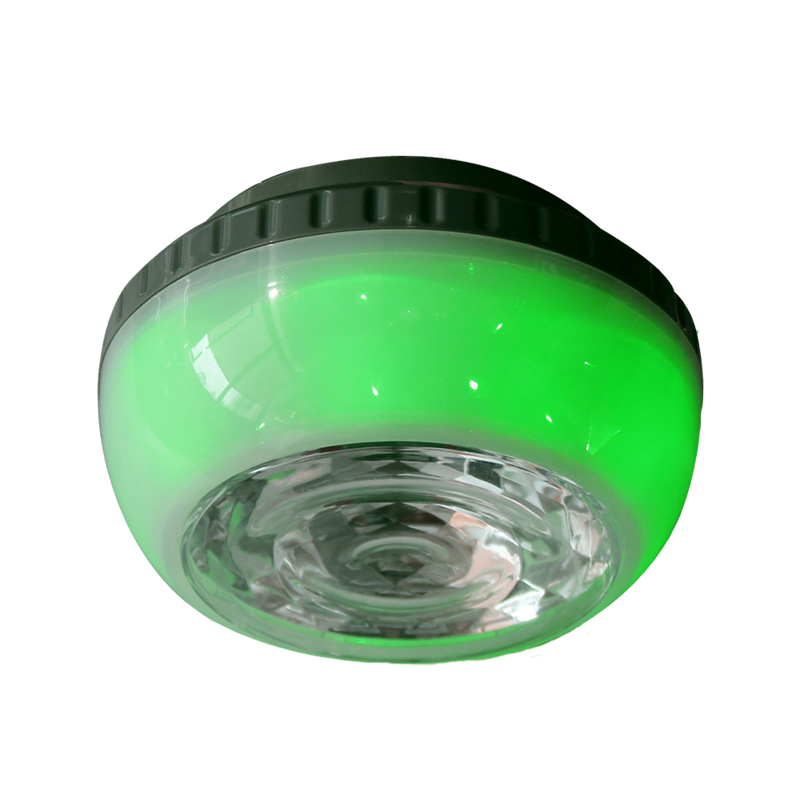

Wireless LED Indicator UIW-215
The wirelss Indicator is designed for mechanical parking garage and show the availability of a parking space, the indicator is connected to wireless ultrasonic detector. Indications options: red/green, red/blue.
- Red Color Means Occupied, Green Color Means Vacant
- Visible Distance More than 50 Meters
- 2.4G WiFi to Wireless Ultrasonic Detector
- RS485 Communication Protocol to Controller
- Snap on Base, Easy to Install and Adjustment
- Real Time Showing Parking Sapce Status
| Parameter |
| Power |
DC 24V
|
| Visual Angle
|
180 degrees
|
| Visual Distance
|
> 50 meters
|
| Wireless Distance
|
< 18 meters
|
| Working Temperature
|
-25â„?to 65â„?
|
| Working Temperature |
-25â„?to 65â„?/td>
|
| Demand
|
match with wireless detector
|

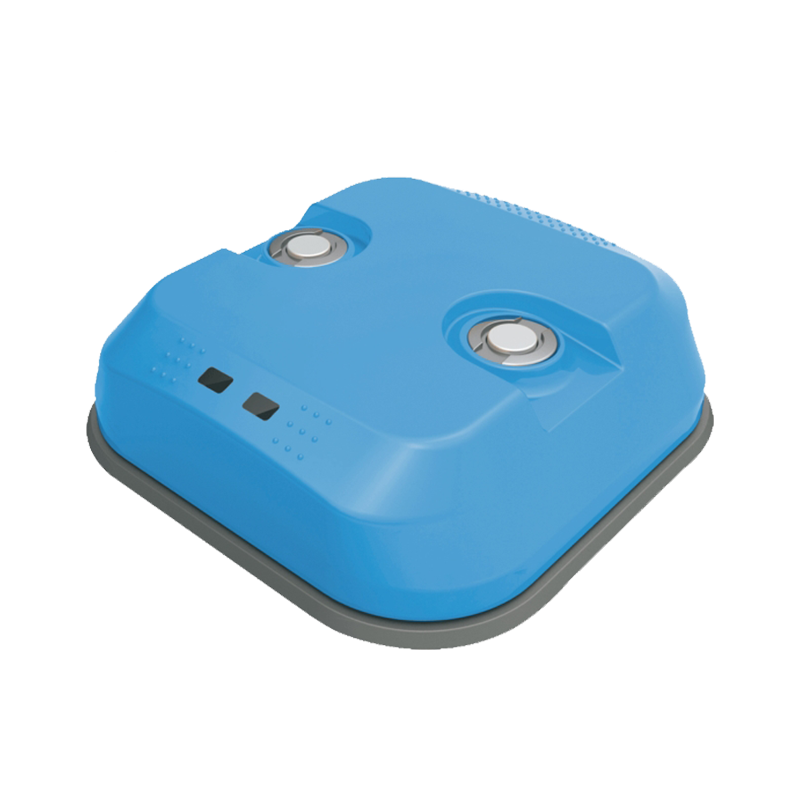

Wireless Ultrasonic Sensor USW-220
The wireless ultrasonic sensor is designed for installing on mechanical parking garage and ultrasonic-based technology employ for detection of real-time parking space occupancy information, the space status is displayed on related wireless LED indicator.
- Wireless Ultrasonic Sensor
- Detect Distance:20cm~110cm
- Built in replaceable Battery (3~5 years)
- 2.4G Wireless Communcation
- Splashproof & Crush Resistance Shell
- Snap on Base, Easy to Install and Adjustment
- Real Time Monitoring Parking Sapce Status
| Parameter |
| Power |
Built-in Battery 3~5 years
|
| Type |
Ultrasonic
|
| Detec Distance |
20-110cm
|
| Communication |
2.4G Wireless
|
| Dimension |
145*145*45mm
|
| Working Temperature |
-25â„?to 65â„?/td>
|
| Application |
Indoor Covered Parking Lots
|
| Demand
|
match with wireless Indicator
|
