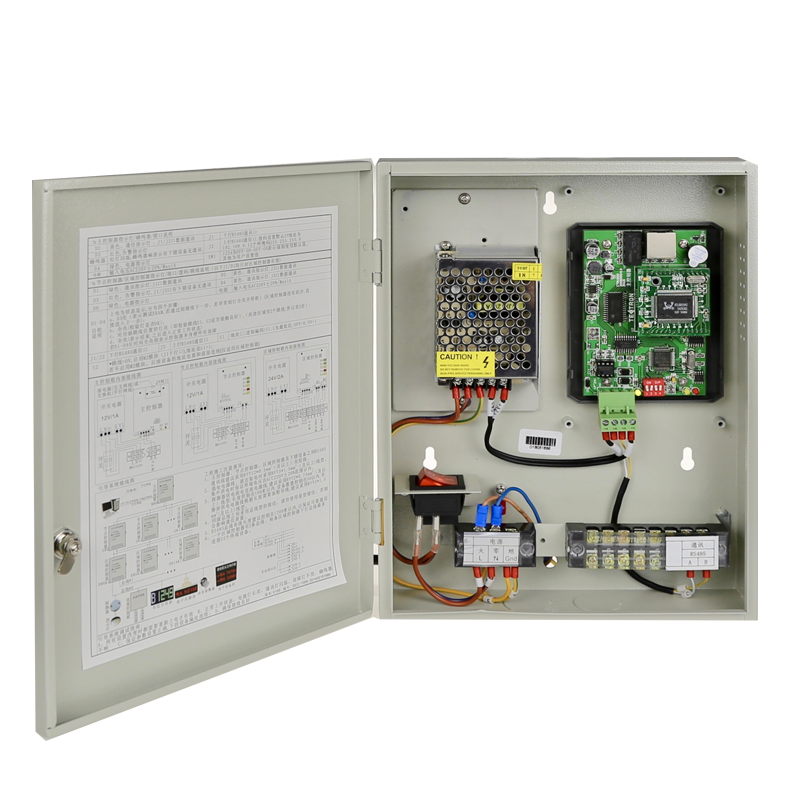

Main Controller CM-100
The main controller module is the core of parking guidance systems dealing data processing, all the calculation jobs are done by the main controller. Main controller uplink to computer via TCP/IP, downlink to node controller via RS485.
- Main Controller (CM)
- TCP/IP to Computer
- RS485 to Node Controller (CN)
- Baud Rate 10M/19200bps
- Can Work independently without PC
- 1 CM Control 1-16 Units CN
| Parameter |
| Input Voltage
|
220V, 110V optional
|
| Operating Voltage
|
DC 12-24V
|
| Power Consumption
|
1W
|
| Uplink Communication
|
TCP/IP
|
| Downlink Communication
|
RS485
|
| Baud Rate
|
10M/19200bps
|
| Size
|
330*275*110mm
|
| Working Temperature
|
-25â„?to 65â„?
|
| Capacity
|
Control 1-16 Units NC
|

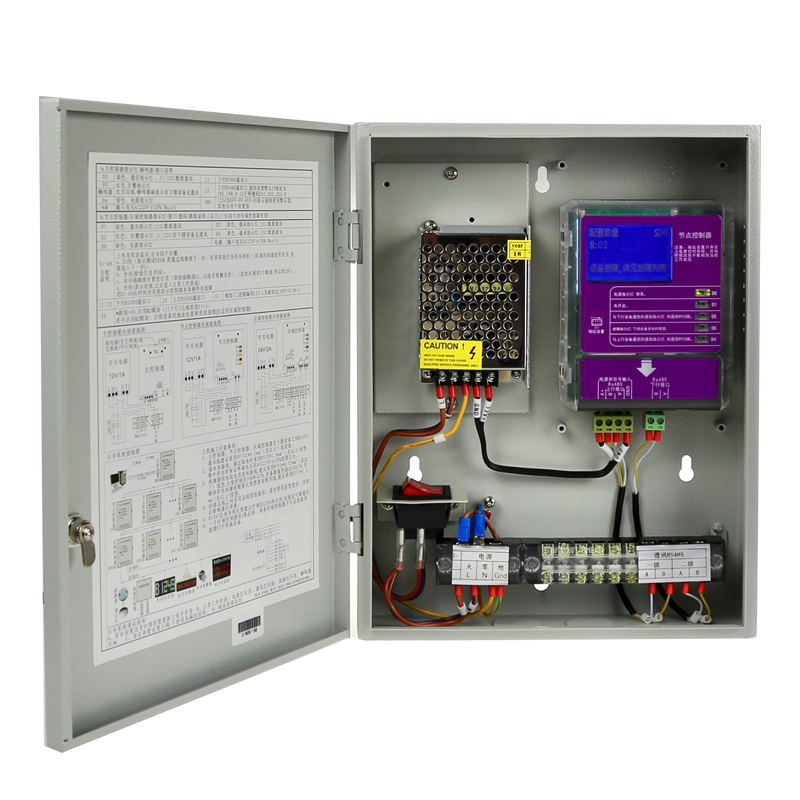

Node Controller CN-200
The node controller is used to collect data from region controller and forward data to main controller. Node controller module connect to main controller module and zone controller module via RS485.
- Node Controller Module (CN)
- RS485 to Main Controller & Zone Controller
- Baud Rate 19200/9600bps
- 1 CN Control 1-8 Units Zone Controller (CZ)
| Parameter |
| Input Voltage
|
220V, 100V Optional
|
| Operating Voltage
|
DC 12-24V
|
| Power Consumption
|
1W
|
| Communication
|
RS485 |
| Baud Rate
|
19200/9600bps
|
| Size
|
330*275*110mm
|
| Working Temperature
|
-25â„?to 65â„?
|
| Capacity
|
Control 1-8 Units CZ
|

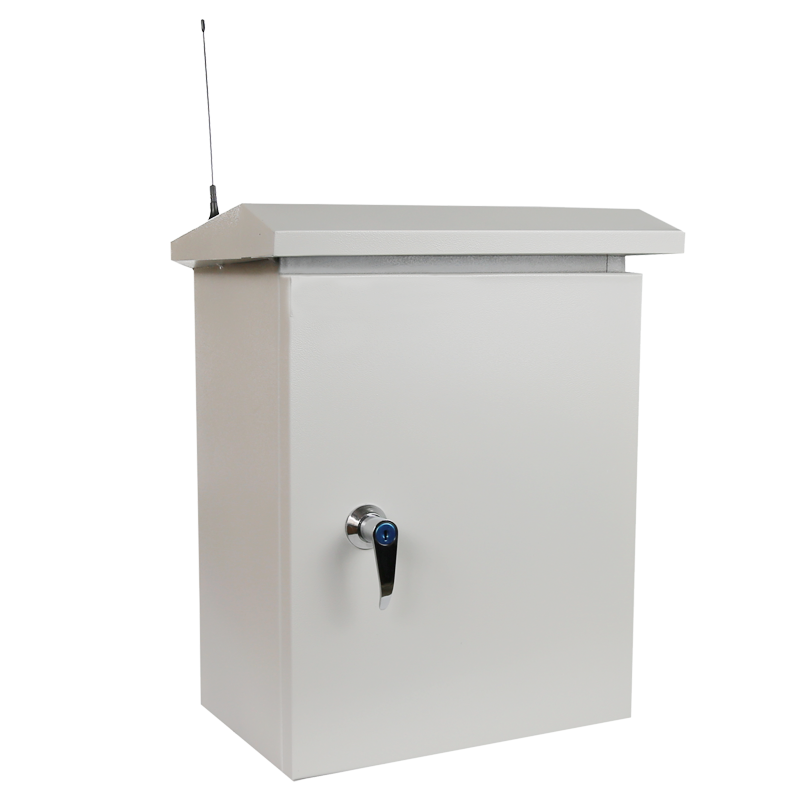

Wireless Controller CW-300
The wireless controller is used to manage the working state of wireless magnetic-electric sensor. Wireless controller uplink to computer via wireless network, downlink to node controller module via 433M or LoRa.
- Wireless Controller (CW)
- Bulit-in Wireless Communication Module
- Outdoor Waterproof Casing
- Solar Panel Power Supply Optional
| Parameter |
| Input Voltage
|
220V, 110V Optional
|
| Operating Voltage
|
DC 12V
|
| Communication Mode
|
433M or LoRa
|
| Communication Distance
|
433M for 30metes, LoRa 1KM
|
| Capcacity
|
433M for 56 pcs Detector
Lora for 200pcs Detector
|
| Working Temperature
|
-25â„?to 65â„?/td>
|
| Size
|
330*275*110mm
|

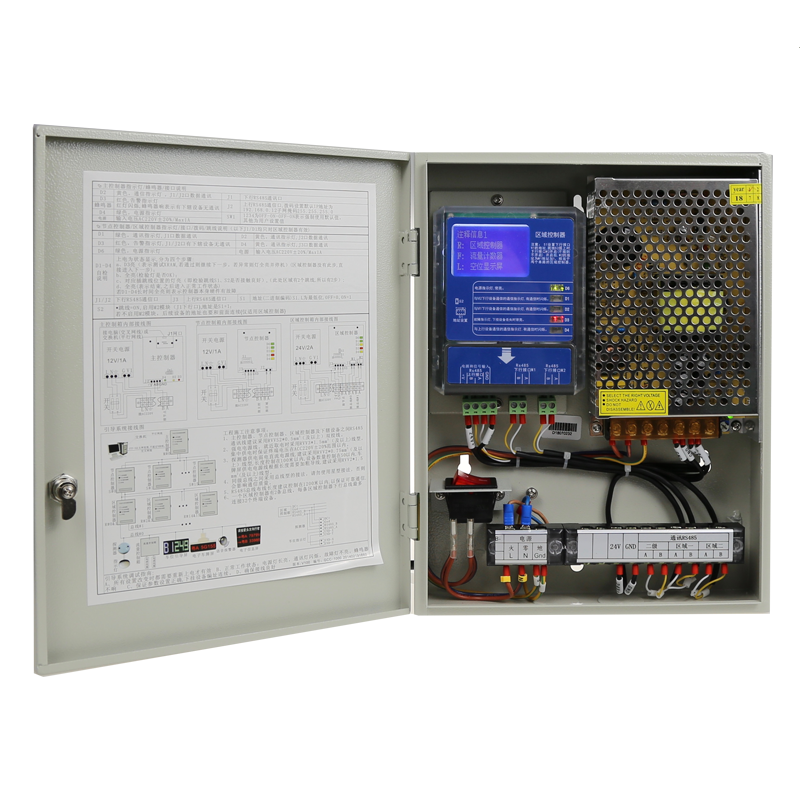

Zone Controller CZ-300
The zone controller is used to collect realtme parking space status of the sensor which is under its control ,and send parking space data to node controller. Zone controller connect to node controller, detector and guidance display via RS485.
- Zone Controller Module (CZ)
- DRS485 to NC, Sensor and Guidance Display
- Baud Rate 19200/9600bps
- 1 CZ Control 1-64 Units Device (Sensor, Guidance Display)
| Parameter |
| Input Voltage
|
220V, 100V Optional
|
| Operating Voltage
|
DC 12-24V
|
| Power Consumption
|
1W
|
| Communication |
RS485 |
| Baud Rate
|
19200/9600bps
|
| Size
|
330*275*110mm
|
| Working Temperature
|
-25â„?to 65â„?
|
| Capacity
|
Control 1-64 Units Device
|
