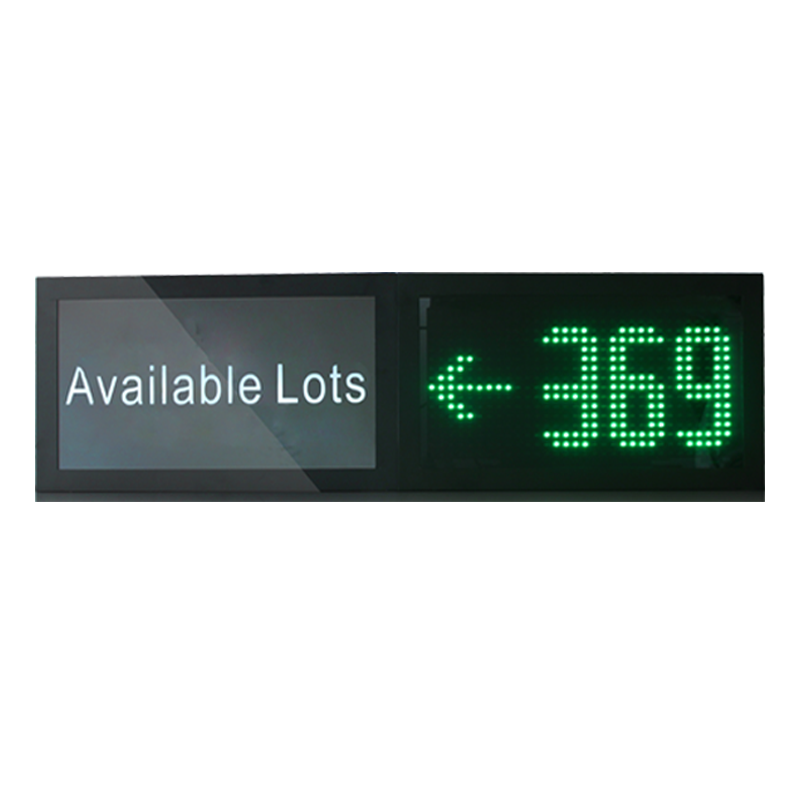

Indoor Parking Guidance Display DIS-210
The LED guidance display installed at intersections of main carriageways of parking lot, showing number of vacant parking space for a specific region/direction. The motorist can easier find the vacant parking space.
- Supports 3 Directions Arrow Guide
- 3 Digits Number Maximum Show 999 Parking Lots
- RS485 Communication Protocol
- Aluminum Frame Housing
- Light Box Acrylic Panel, White Word with Backlight
- Customizable Display Content & LED Color
- High Brightness LED, Brightness Adjustable
| Parameter |
| Input Power
|
AC220V (AC 110V Optional)
|
| Output Power
|
DC12V/ DC5V
|
| Powe Consumption
|
< 25W
|
| Communication Protocol
|
RS485 |
| LED Dot Matrix
|
16*32, Green Dot Matirx
|
| Installtion Way
|
Hanging
|
| Working Temperature
|
-25â„?to 65â„?
|
| Display Area
|
320*160mm
|
| 1 Display Dimension
|
385*230*80mm
|
| Dimension with Light Box
|
770*230*80mm
|

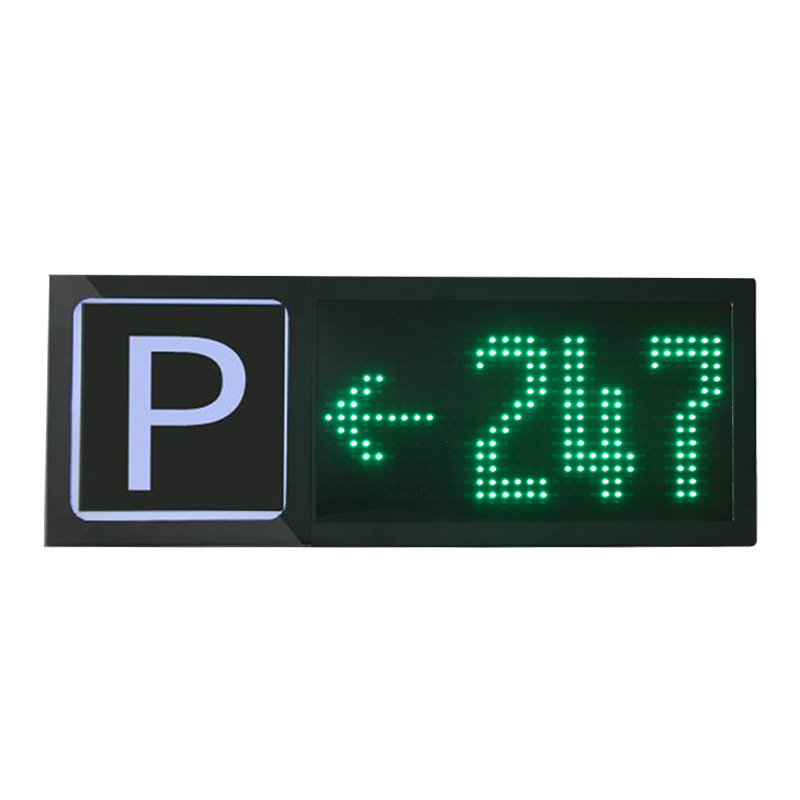

Indoor Parking Guidance Display DIS-215
The LED guidance display installed at intersections of main carriageways of parking lot, showing number of vacant parking space for a specific region/direction. The motorist can easier find the vacant parking space.
- Supports 3 Directions Arrow Guide
- 3 Digits Number Maximum Show 999 Parking Lots
- RS485 Communication Protocol
- Aluminum Frame Housing
- Light Box Acrylic Panel, White Word with Backlight
- Customizable Display Content & LED Color
- High Brightness LED, Brightness Adjustable
| Parameter |
| Input Power
|
AC220V (AC 110V Optional)
|
| Output Power
|
DC12V/ DC5V
|
| Powe Consumption
|
< 25W
|
| Communication Protocol
|
RS485 |
| LED Dot Matrix
|
16*32, Green Dot Matirx
|
| Installtion Way
|
Hanging
|
| Working Temperature
|
-25â„?to 65â„?
|
| Display Area
|
320*160mm
|
| 1 Display Dimension
|
560*210*80mm
|

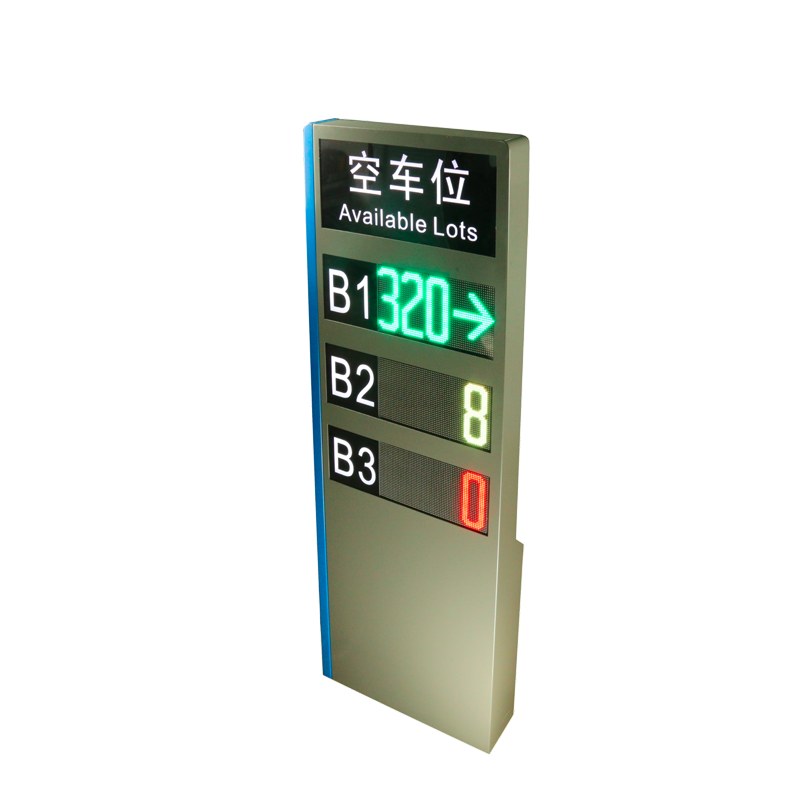

Outdoor Parking Guidance Display DOS-320
The LED guidance display installed at entrance of parking lot, showing number of vacant parking space for whole parking lot or each floor. The motorist can easier find the vacant parking space.
- Vertical Guidance Screen
- Available Parking Space Display 0 ~ 999
- RS485 Communication Protocol
- Outdoor Waterproof Aluminum Frame Housing
- Max Support 4 Screen Module
- Customizable Display Content & LED Color
- High Brightness LED, Brightness Adjustable
| Parameter |
| Input Power
|
AC220V (AC110V Optional)
|
| Powe Consumption
|
1 Display about 10W
|
| Communication Protocol
|
RS485
|
| LED Dot Matrix
|
16*32, Green Dot Matirx
|
| Working Temperature
|
-25â„?to 65â„?/td>
|
| Display Area
|
1 Display 320*160mm
|
| Dimension
|
1600*550*150mm
|

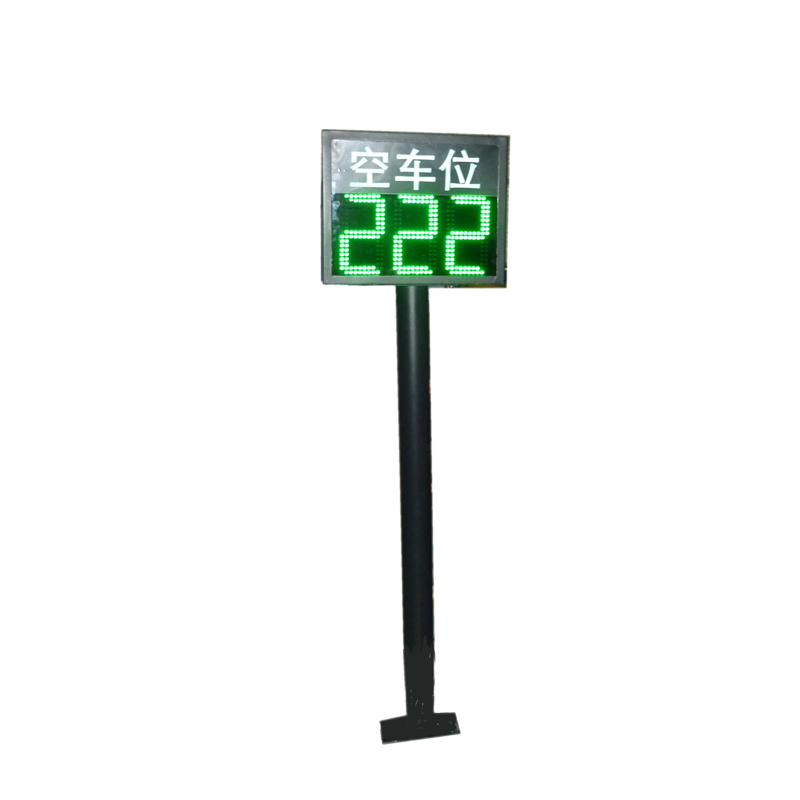

Outdoor Parking Guidance Display DOS-540
The LED guidance display installed at entrance of parking lot, showing number of vacant parking space for whole parking lot or each floor. The motorist can easier find the vacant parking space.
- Vertical Guidance Screen
- Available Parking Space Display 0 ~ 999
- RS485 Communication Protocol
- Outdoor Waterproof Aluminum Frame Housing
- Customizable Display Content & LED Color
- High Brightness LED, Brightness Adjustable
/li>
| Parameter |
| Input Power
|
AC220V (AC110V Optional)
|
| Powe Consumption
|
about 10W
|
| Communication Protocol
|
RS485
|
| LED Dot Matrix
|
16*32, Green Dot Matirx
|
| Working Temperature |
-25â„?to 65â„?/td>
|
| Display Area
|
1 Display 320*160mm
|
| Height
|
1200mm
|
